Unveiling the Power of Partnership: JPNS International Joins Forces with SAPAG VALVES

We are delighted to announce an extraordinary partnership between JPNS International and SAPAG VALVES, the epitome of excellence in Europe’s industrial valve manufacturing industry. With a remarkable history dating back to 1849, SAPAG VALVES has evolved into PVI (Picardie Valves Industries), becoming Europe’s leading manufacturer of fully customizable butterfly and ball valves, catering to diverse industries worldwide.

A Rich Legacy of Innovation

SAPAG VALVES’ journey began as a foundry and mechanical engineering plant, serving the sugar industry and pioneering the manufacture of copper pipes. In response to the needs of sugar factories, the company ventured into the production of valves in 1929. Since then, the company’s commitment to innovation and precision has propelled it to the forefront of the valve industry.

PVI – The Vanguard of Industrial Valves

Today, operating under the name PVI, the company boasts over 90 years of expertise in crafting a wide range of high-quality, high-performance industrial valves. From fully customizable butterfly valves (lined or metal) to robust ball valves made from carbon steel and stainless steel, PVI’s product offerings leave no requirement unmet. Moreover, their specialized control valves, including the anti-cavitation type, and reliable pressure relief valves further exemplify their dedication to providing comprehensive valve solutions.

Unmatched Manufacturing Capabilities

At the core of PVI’s success lies its ability to manage all aspects of industrial valves in-house. Employing over 118 skilled professionals, the company oversees every stage of the valve manufacturing process. From shot blasting to painting, from machining to welding, from assembly to packaging, each step is executed with precision and finesse. This meticulous approach ensures that every valve that bears the PVI name meets the highest standards of quality and performance.

A Global Presence

PVI’s commitment to excellence has transcended borders, and today, the company proudly operates in more than 70 countries across the globe. With over 50% of their production exported to all five continents, PVI’s reach knows no bounds. This international presence speaks volumes about the trust placed in their products by clients from diverse industries worldwide.

JPNS International and PVI – A Vision of Excellence

In joining forces with SAPAG VALVES, JPNS International takes immense pride in partnering with a company that has stood the test of time and continually set new benchmarks in industrial valve manufacturing. Our shared vision of excellence and unwavering dedication to customer satisfaction fuel our collaboration to deliver cutting-edge valve solutions that empower industries to thrive.

As the partnership between JPNS International and PVI takes flight, we look forward to embarking on a journey of innovation, trust, and success. Together, we will usher in a new era of fully customizable butterfly and ball valves, catering to the unique needs of industries around the world. With PVI’s impeccable track record, coupled with JPNS International’s commitment to delivering value, this collaboration promises to revolutionize the industrial valve landscape and empower businesses to unleash their true potential.

Products

SAPAG® JMC Resilient Seated Butterfly Valve
SAPAG® JMC Resilient Seated Butterfly Valve

The SAPAG® JMC range features a proven disc, shaft and seat arrangement designed for use in high pressure and high velocity applications.

General applications

Water distribution and treatment networks, Food industry, Paper industry, Chemical and petrochemical industry, Sea water networks, General industry, Vaccuum (tested at 1 torr), etc.

Technical data

Valve size (DN) : 40 – 3000

Working pressure (bar) : 25 max (acc.DN)

Températures (°C): -29 / 170

Bidirectional design.

Leakage Rate : EN12266-1 – Rate A (no leakage)

Flange type

Wafer / Lug / Double Flange.

PN 10/16/20/25/40/50.

ANSI 150/300.

Others : on request.

Certifications and approvals

Marine : Bureau Veritas, DNV.

Oil : Total.

Fire protection : UL, VDS.

Potable water : ACS, WRAS, PSB.

Food : FDA, CE1935.

Electrical continuity

Advantages:

Face to face ISO 5752 – S20.

Low weight.

High flow rate coefficient Kv.

High resistance to external stress.

Dryshaft design

Large range of seat and disc materials.

Seat Mechanical anchorage in the body.

Elastomeric seat of Very high Quality (Origin : France),

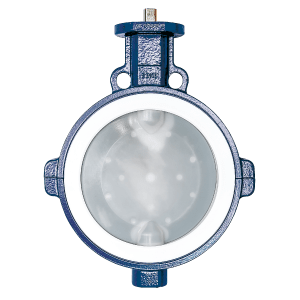

JMT Butterfly Valve with PTFE liner
JMT Butterfly Valve with PTFE liner

JMT (SAPAG®) Butterfly Valve with virgin PTFE / modified PTFE Liner for high chemical demands, to shut off and control corrosive and abrasive liquids or gases.

BODY TYPES

Wafer DN50-300 (Can be made from DN350 to DN1200 with lug body and unthreaded holes.)

Lug DN25-1200.

APPLICATIONS

Butterly valve lined with PTFE/PFA or mod. PTFE/PFA for high chemical demands. To shut off and control corrosive and abrasive liquids or gases.

FACE TO FACE

ISO 5752, Basic Range 20.

EN 558-1, Basic Range 20.

HEAD FLANGE

According to EN ISO 5211.

MAX. OPERATING PRESSURE

DN25-450: 10 bar.

DN500-600: 6 bar.

DN700-1200: 3 bar.

CONNECTION STANDARDS

PN10-16 (DN25-150).

PN10 (DN200- 600).

PN6 (DN700-1050).

ANSI CL150.

TEMPERATURE RANGE

-60 °C up to +200 °C (see Catalogue, p.9: Pressure / Temperature diagram).

IDENTIFICATION MARKING

EN 19.

IN-SHOP TESTING

Porosity Test of Disc Coating (PFA) and Liner (PTFE / mod.PTFE) acc. to EN 60243-1.

Leakage Test acc. to EN 12266-1/P12.

Leakage Rate A.

Check of Torque.

APPROVALS

TA-Luft: Compliance Leakage Certificate according to Position 5.2.6.4. of the Technical Instruction Air (TA-Luft), VDI 2440.

Compliance of the Safety Requirements of the European Pressure Equipment Directive 2014/68/EU.

Atex 2014/34/EU compliant Version for explosive surroundings Group II, Zones 0, 1, 2 (and 20, 21, 22 respectively).

Food: Food (EC) 1935/2004, FDA.

SAPAG® JHP High Performance Double Offset Butterfly Valve
SAPAG® JHP High Performance Double Offset Butterfly Valve

High Performance Double Offset Butterfly valve. SAPAG® JHP is characterized by unreached performance and quality in the range of double offset butterfly valves.

General application:

Water distribution and treatment networks, Food industry, Paper industry, Chemical and petrochemical industry, Sea water networks, General industry, Vaccuum (tested at 1 torr).

Technical data:

Valve size (DN) : 50 – 900.

Working pressure (bar) : 40 max (acc.design).

Températures (°C): -50 / 400 (acc.design).

Double offset

Leakage Rate : EN12266-1 – Rate A (no leakage) (RTFE seat).

Flange type:

Wafer / Lug.

PN 10/16/20/25/40/50.

ANSI 150/300.

Others : on request.

Certificates ans Approvals:

Marine : ABS, Bureau Veritas, DNV.

Oil (Total).

Fire Safe : API 607-ISO 10497.

Potable water : ACS.

Fugitive emission : TA LUFT.

Food : FDA.

Electrical continuity

Advantages:

Face to face : ISO5752 S20 (other on request).

Low weight.

High flow rate coefficient Kv.

High resistance to external stress.

External travel stops.

Adjustable packing gland.

Continuous flange gasket surface.

Bidirectional with RTFE seat.

Direct actuator assembly.

Rmi Dubex® Triple Offset Butterfly Valve
Rmi Dubex® Triple Offset Butterfly Valve

Rmi Dubex® Triple Offset Butterfly Valve is characterized by a triple eccentric design with an elastomeric seal mounted on the butterfly.

Applications

Water distribution and treatment networks.

Sea water networks.

Energy production network (power plants, general industries).

Technical data

Valve size (DN) : 150-2800.

Pression : 25 bar maxi (Selon DN).

Temperature : -10 to +80 °C (acc. configurations).

Triple offset

Leakage Rate : EN12266-1 – Rate A (no leakage).

Flange type

Double Flange.

PN 10, PN 16, PN25.

ANSI 150.

Others : on request.

Advantages

Face to face court ISO 5752 – S14.

High closing torque for better internal tightness.

No friction of the seal on seating surface.

Disc seat is adjustable and can be easy change.

Downloads

Please click on the image below to download Sapag Catalogues – Contact Us HERE if you need additional information, quotes or would like to place an order.

Sapag Valves Product Catalogue
Sapag Valves Product Catalogue
JMC Butterfly Valves Catalogue
JMC Butterfly Valves Catalogue
JHP High Performance Butterfly Valve Catalogue
JHP High Performance Butterfly Valve Catalogue
JMT Butterfly Valve Catalogue
JMT Butterfly Valve Catalogue
